Our products: COR Vision Plus Sliding
Minimalist door system designed for large dimensions
Minimalist sliding system specially suitable for large dimensions (up to 4,000 mm/sash of width or height)
Possible to cover great openings with a glass surface of 94%
Visible section of just 25 mm
Outstanding thermal and acoustic performance
Visible section of just 25 mm
Outstanding thermal and acoustic performance
It comes with the possibility of motorised opening for sashes up to 700 kg, and manual opening for up to 400 kg. Additionally, it allows to place multipoint lock systems by operating rod, with or without key

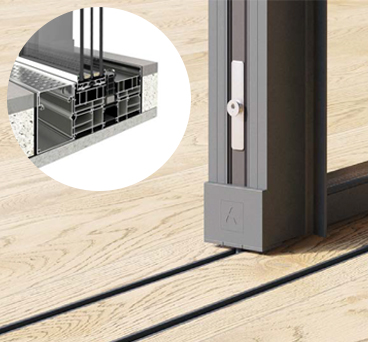

The rollers are placed in the frame, and the sashes count with a stainless steel reinforced rolling area which makes the sliding movement smoother
Possibility of corner sash encounters at 90º without needing a mullion
The motorised version allows to completely hide the sash within the frame in closing position
Possibility of corner sash encounters at 90º without needing a mullion
The motorised version allows to completely hide the sash within the frame in closing position
» Maximum glazing thickness
- 56 mm
» Opening possibilities
- Sliding of 2, 4 or 6 sashes
- Up to 4 rail configurations
- 1 sash + 1 fixed / 2 sashes + 1 fixed
- Possibility of corner sash encounters at 90º without mullions
- Pocket solution possibility 1,2,3, and 4 sashes

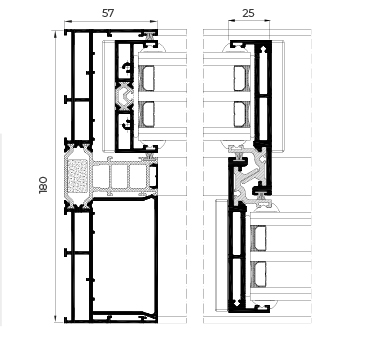

» Sections- Frame – 180 mm – 278 mm 3 rails
Sash – 69 mm
» Profile thickness
- Door 2.0 mm
» Polyamide strip length
- from 18 to 40 mm
» Maximum dimensions/sash
- Width (L) = 4000 mm
Height (H) = 4000 mm
Glass surface ≤ 14 m²
» Maximum weight/sash
- 400 kg Manual
- 700 kg Motorised
Please consult regarding maximum weight and dimensions for other opening types
» Finishes
- Possibility of dual colour systems
- Colour powder coating (RAL, mottled and rough)
- Wood effect powder coating
- Anti-bacterial powder coating
- Anodised
Save file: COR Vision Plus Sliding PDF
